Using Reflected Light Meters, Part One
Metering and Light Meters
In auto exposure modes, your camera meter is perfectly designed to give you "average" exposures in average situations, but it can't give you the "ideal" exposure for subjects of all colors and tones in every situation. If you want to get the best possible exposure, you have to take the camera off "autopilot" and control the metering yourself.
Metering is all about taking the wide range of tones (from light to dark), colors, and lighting conditions in the real world and translating them into the much more limited range of tones in a photograph. Metering is the key to good exposures. The human eye can see a huge range of tones from light to dark in sun and shade all at the same time. A camera, whether digital or film, can't capture the whole range of tones that the human eye can see in a single exposure (although several different exposures of the same scene can be combined to approximate what the eye can see ). Lots of choices need to be made for you to end up with an exposure that you like.
Light meters (and other tools) will help you get the exposure you want. Modern light meters are absolutely, whiz-bang amazing and do an accurate job, provided you understand what they are (and aren't) designed to do. As long as you know how to talk their language and make them do their tricks for you, they are an excellent tool in most situations to arriving at an excellent exposure decision.
Reflected and Incident Light Meters
There are two primary kinds of photographic light meters.
Reflected light meters measure the intensity of the light that is reflected off the subject. For that reason, you usually point a reflected light meter at the subject. The meter in your camera is a reflected light meter.

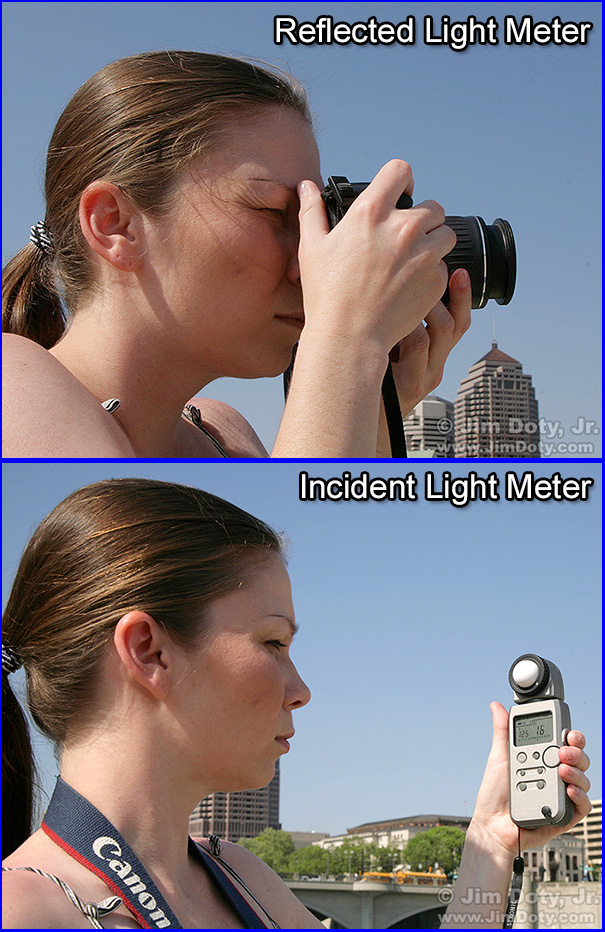

Incident light meters measure the intensity of the light that is falling on ("incident
to") the subject. Therefore, you usually point an incident light meter at the light source. There is an incident light meter with the characteristic white dome in the
second photo below. Incident light meters will be covered in another article in this series.
Both meters do the same thing, they measure the intensity of the light. Light meters can't "see" like you and me, they just count photons of light. It is very much like sound meters. They can't "hear" like you and me, they just measures the intensity of the sound waves (and some measure the frequency of the waves) but a basic sound meter can't tell if the sound is coming from a symphony or a freight train. Light meters measure the intensity of the light, but they can't tell if the light source is a light bulb, flashlight, moonlight, or campfire. Incident light meters are color blind. Most reflected light meters are also color blind so they don't know if the light bouncing off your subject is dark red, medium green, pale blue, or pink with purple polka dots.

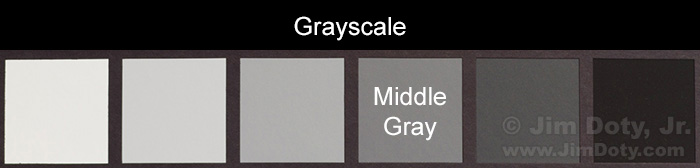

Light meters are calibrated for a "middle gray" tone that is about half way in between black and white.
Reflected light meters do a terrific job if your subject is "middle gray" in tone, or if all of the tones in your scene happen to average out to a middle gray. The problem is, most subjects aren't exactly a middle gray, so when a light meter gives you a suggested exposure, it is not giving you an ideal exposure that will work for all subjects of all colors and tones.
If your light meter says "f/16, and 1/100 second at ISO 100", what it is really telling you is this: "f/16 and 1/100 second at ISO 100 is a good exposure in these lighting conditions if your subject is middle gray in tone." If your subject is lighter or darker than middle gray, you will need to make some adjustments from this recommendation to get the best possible exposure.
"In Camera" Reflected Light Meters vs Hand Held Reflected Light Meters
Reflected light meters are found in your camera and are also available as a separate , hand held meter. Most photographers use an "in camera" reflected light meter. It is rare that you will see a photographer using a hand held reflected light meter.
Large format landscape photographers are the exception. They don't have a meter in their camera, so many of them use a spot-meter, a hand held reflected light meter that measures a very small area in a scene so the photographer can meter individual tones in the larger scene.
Most cameras have a built in reflected light meter. By changing the metering pattern you can meter most of the scene in your viewfinder (center-weighted average), the central area in your viewfinder (partial area metering), or just a tiny spot in the center of your viewfinder (spot metering - just like a hand held spot meter used by large format photographers).
In camera reflected light meters have the advantage over hand held reflected light meters because they meter "through the lens" (TTL) and any light robbing accessories you might be using in front of or behind your lens. Teleconverters, extensions tubes, filters, and other other accessories used with the lens reduce the amount of light that reaches the digital sensor or film. Not only that, some lenses get longer (lens extension) as they focus closer so they lose light in the process. Some macro lenses lose as much as two stops of light as they reach maximum magnification (closest point of focus).
A hand held reflected light meter is oblivious to these accessories (and lens
extension) so they will give you an incorrect meter reading unless you allow for the amount of light that each accessory is costing you. If your 1.4x teleconverter is
costing you one stop of light, you need to add one stop of light to what the hand held reflected light meter is telling you. Your TTL in camera meter measures the
light after it has gone through your lens and accessories, so no changes need to be made to allow for any accessories you happen to be using. You DO need to make changes to allow for different subject tonalities.
Your Reflected Light Meter's Love Affair with Middle Gray Tones
Your reflected light meter is in love with middle gray. It does its best to turn anything you meter into a middle gray tone.
You can prove this to yourself with gray, black, and white subjects. Just be sure when you meter your subject that the meter sees only the subject, and not any other tones in the scene.
In the following photo of a black, gray, and white calibration target, I moved in close and metered just the gray center section and locked in that exposure so it wouldn't change. Then I backed up and photographed the whole calibration target and included some of the background. As a result, the calibration target looks just like it does in real life.

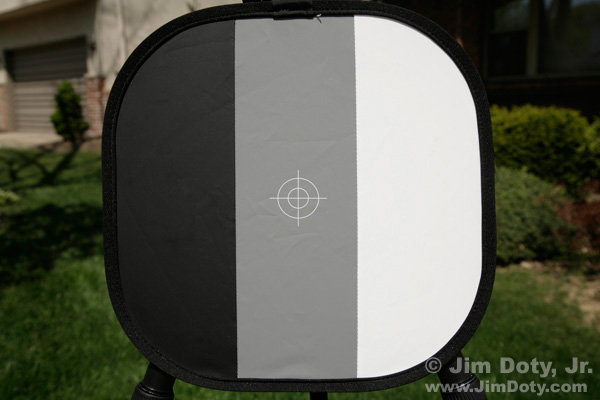

Calibration Target #1, Metered for the Gray Center Section

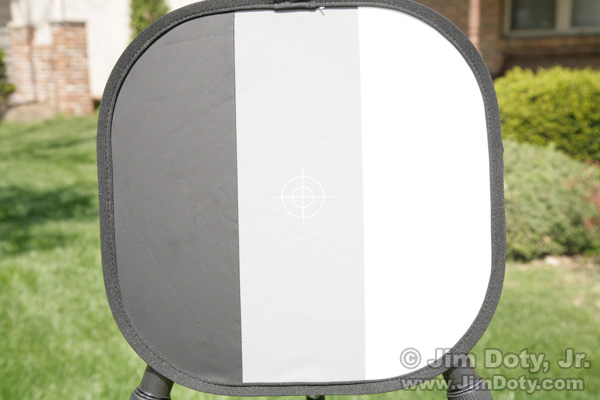

Calibration Target #2, Metered for the Black (Left) Section
As you can see. the meter did its best to turn the black section (in real life) into a middle gray tone (in the photo) and everything else ends up lighter in tone.
In the following photo, I did exactly the same thing, except I moved in close and metered the white section on the right.

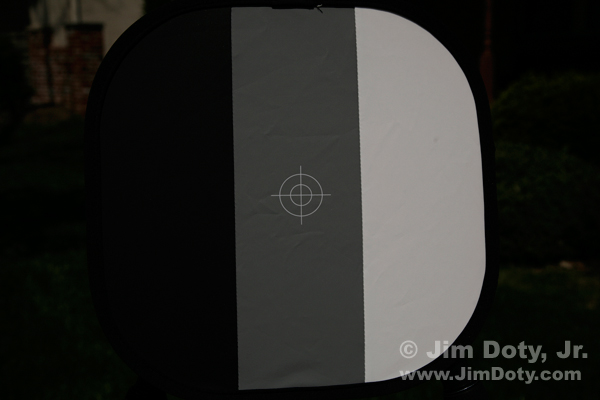

Calibration Target #3, Metered for the White (Right) Section
The meter did its best to turn the white section (in real life) into a middle gray tone (in the photo) and everything else ends up darker than in real life.

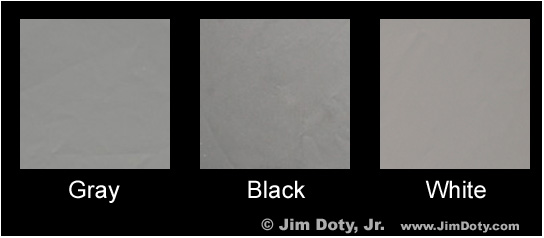

To see how well the meter did it's job, look at these "color patches".
The left patch is part of the gray section of the calibration target from the first photo. The center patch is part of the black section from the second photo. The right patch is part of the white section from the third photo. The meter did a pretty good job of making all three a "middle gray" in tone.
Three things are obvious from these above photos.
1. If you meter something middle gray in tone, everything in the photo ends up looking pretty much like it does in real life. That's why a lot of photographers will meter an 18% gray card or the gray section of a calibration target (like the one above), and use that meter reading as the basis of their exposure when they photograph their scene.
2. If you meter something darker than middle gray, everything looks lighter in the photo than it does in real life. The darker the subject you meter, the lighter the tones will be in the photograph.
3. If you meter something lighter than a middle gray, everything looks darker in the photo than it does in real life. The lighter the subject you meter, the darker the tones will be in your photo.
Why Your Meter Gets Fooled
How does this apply to the real world when you aren't photographing calibration targets?
Your camera meter's desire to make everything middle gray (or "medium toned" in the world of color) leads it astray when your subject isn't medium toned, or if all the tones in a scene don't average out to a medium tone.
In the following photo, my camera was set to manual metering mode, and the aperture to f/16 to give me enough depth of field to keep everything sharp from the foreground rocks to the distant mountains. I set the metering pattern to partial area metering so the camera would only meter the central 10-15 percent of the frame. I zoomed in on the blue sky and sunlight peaks and set my shutter for a good exposure. Then I zoomed back to include the whole scene and took the picture. The ISO was set to 100 for maximum image quality, and the camera was on a tripod so the photo wouldn't be blurred during the 1/5 second exposure.
Long's Peak and Nymph Lake, Rocky Mountain National Park
The photo came out just like I wanted it to with the warm light on the peaks, the reflection in the water, and the contrast of the very dark evergreens in the shade.
While I was taking the picture, the camera meter was screaming at me: "Too Dark! Too Dark!!" (I'm sure your meter talks to you too!) The meter was seeing all of the dark tones in the center of the image and it wanted to make them medium toned. I decided to let the camera meter have its way. The photo would look awful, but it would be a nice demonstration of what happens when camera meters go astray. So I turned the shutter speed dial until the meter was happy (1.6 seconds, 3 stops more light than the above photo) and took this picture.
Long's Peak and Nymph Lake, Rocky Mountain National Park
As expected, the meter did its best to make the large, central area of the frame average out to a medium tone, but the mountains and sky are now three stops overexposed and seriously washed out ("burned out" in photo terms). I could digitally combine the two photos so I have some tonality in the trees (which is another reason I took more than one exposure), but I rather like the dramatic, high contrast lighting of the original image.
Due to your meter's fascination with creating medium toned subjects, you need to do some exposure compensation when photographing subjects that are lighter or darker than a medium tone. Exposure compensation simply means adding or taking away light from what the camera meter tells you. For light subjects, you add light to what the meter tells you. For dark subjects, you take away light. Just repeat this phrase a few times: "Add light to make light". This may seem counterintuitive. Your pupils stop down in really bright light so it is tempting to say "Wow, that's really bright snow, I should stop down my lens." But we are talking photography, so "Add light to make light."
How much light do you add or subtract? That is a judgment call on your part that gets better with experience.
If your subject is medium toned, do what the meter tells you. don't add or subtract any light.
If your subject is light in tone, add a stop of light to what the meter tells you by opening your lens up one stop, or using a shutter speed one stop longer. If you are photographing a very light tone, add two stops of light. The standard advice If you are photographing a dark tone, is to subtract one stop of light from what the meter tells you. If you are photographing a very dark tone, subtract two stops of light.
For example, if you are photographing a field of wheat that is ready to harvest (which is about one stop lighter than a medium tone), and the meter says f/11 at 1/250 second, add one stop of light by changing the f-stop to f/8 or by changing the shutter speed to 1/125 second. If you are photographing evergreen trees (which are darker than middle gray) and the meter says f/11 at 1/60 second, subtract one stop of light by changing the f-stop to f/16 or the shutter speed to 1/125 second. If you aren't exactly clear on which apertures and shutter speeds to use to add or subtract a given amount of light, go back and read Speaking Your Camera's Exposure Language.
Here's the standard exposure compensation advice when metering subjects with a reflected light meter:
But in my experience, subtracting that much light for Dark and Very Dark subjects results in subjects that are usually too dark for my personal taste. So here is the exposure compensation that I recommend:
As you gain more experience, at some point you will begin to use half stop
increments. You might look at a light sandy beach and say "This sand is lighter than "Light" (+1 on exposure compensation chart above) but not as light as "Very Light"
(+2) so I will add one and a half stops of light (+1 1/2) to what the camera meter is telling me.
The best way to get a feel for subject tonality and exposure compensation is to experiment. Pick a bright sunny day with clear blue northern skies (southern skies if you are south of the equator) and green grass. If you have an 18% gray card (and having one is a very good idea), bring it along since it is a good standard of reference for medium gray. Find something red and something yellow. That way you will have the basic red, yellow, green, and blue colors covered, plus a gray card.
Fill the frame with each subject, being careful not to cast your shadow on the smaller subjects when you get close. Take 5 pictures of each subject in one stop increments from 2 stops less than the camera's recommendations up to 2 stops more. The exposure series will be as follows: -2, -1, 0, +1, +2.

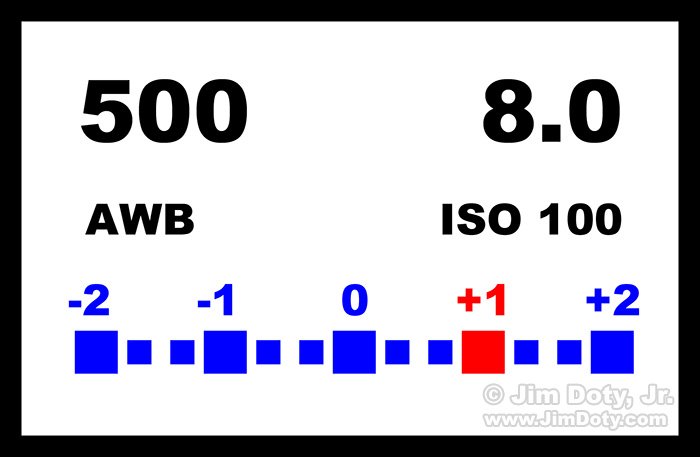

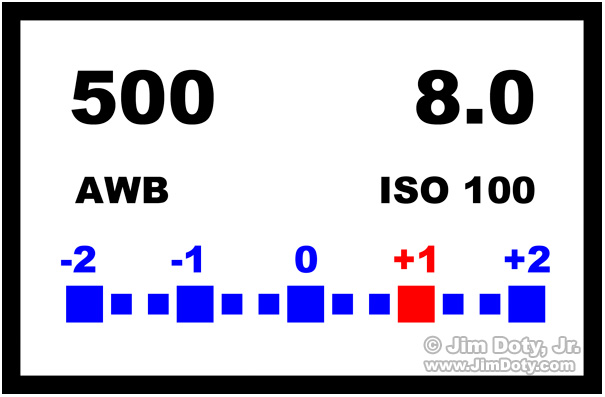

Your camera should have an exposure compensation dial which will tell you how many stops you have subtracted or added to the recommended exposure). You may have an LCD screen that looks something like this.
After you have taken 5 photos of each subject, you should end up with a group of photos that looks like this.

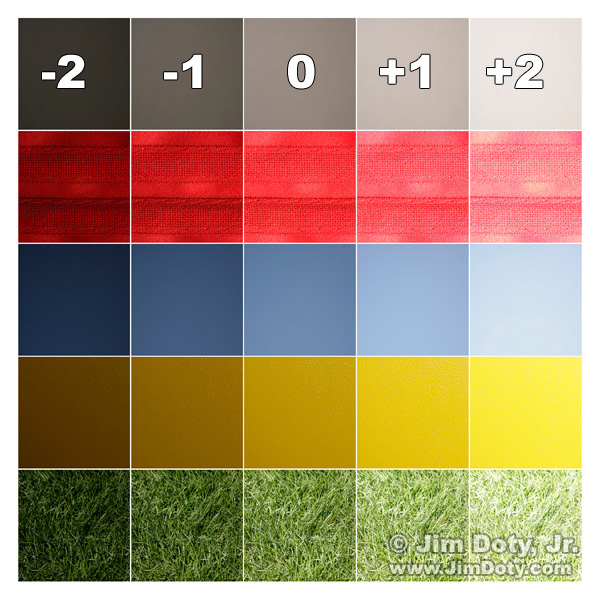

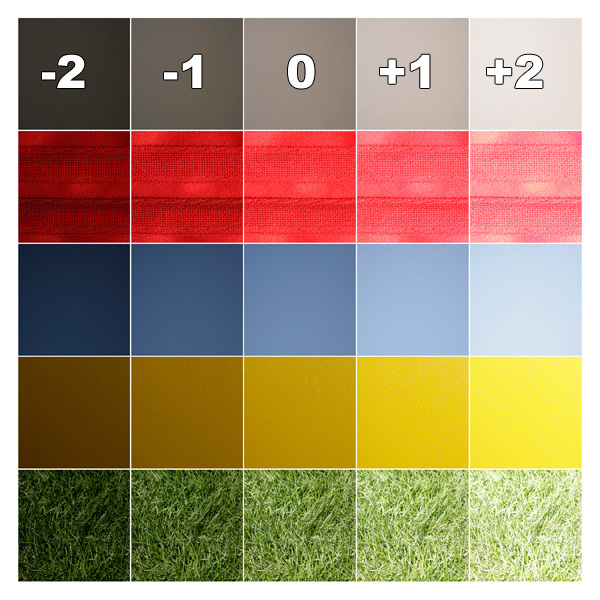

Exposure Compensation Tonality Test Chart
For my tonality test, I photographed a gray card (top row), red cloth, blue sky, yellow bowl, and green grass. The left hand column is all of the -2 exposure compensation photos, no compensation in the middle column photos, and +2 compensation in the right column.
Compare your subjects to the photos and decide which exposure of each subject looks the most like the real life subject. For my photos, it came out like this:
Gray Card: 0 compensation
Take note that blue sky, depending on elevation, atmospheric conditions, and particulate matter in the sky can easily range from 2 tops darker to two stops lighter than a medium tone. Green grass, depending on the time of year and direction of the sun can vary from -2 to +1 or even lighter.
The more you experiment with exposure compensation, the better you will get at deciding how much compensation each subject needs to create a photo that looks like the subject in real life.
Once you have a good handle on exposure compensation, mix things up a bit. Sometimes the best photos come from making the subject look lighter or darker in the photo than it looked in real life. Pros do it all the time. You can make any subject as light or dark as you want. Fashion photographers make dramatic changes in the tonality of a model's skin. Landscape photographers make sunsets lighter or darker all the time.
Consider these two photos, taken the same evening from the same location with different focal length lenses. The second photo was taken much later than the first photo and it was much darker out. I tried a variety of exposures for both photos. The exposure I liked for the first photo is much darker and more dramatic than it was in real life. The exposure I liked for the second photo is just the opposite, much lighter than the original scene.
Sunset, St. Joseph Lighthouse, Michigan
Evening, St. Joseph Lighthouse, Michigan
Experiment with exposure compensation. Play with the light! Don't worry. The exposure police won't come and take you away. Get out there and have fun!
Be sure and read Part Two of this article, Choosing the Right Tone to Meter.
Speaking Your Camera's Exposure Language: Aperture, Shutter Speed, and ISO
Using Reflected Light Meters, Part One
Using Reflected Light Meters, Part Two
Simplify Your Life with an Incident Light Meter
Turn Your Camera Meter Into An Incident Light Meter: Using an ExpoDisc
Using a Gray Card, Incident Light Metering on the Cheap
The RAW versus Jpeg Exposure Advantage
The most detailed information about metering, camera meters, and other metering tools is in my book, Digital Photography Exposure for Dummies.
